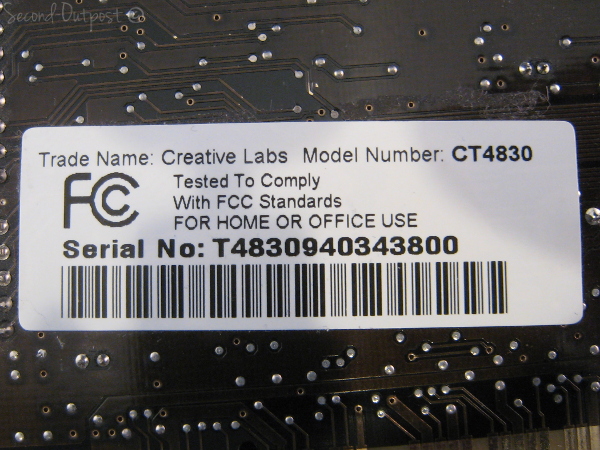

You can open your desktop tower and look for the soundblaster card and somewhere in the board should be the model number or serial number. Should be a sticker or engraved. (you might need to remove the card for better view). Featuring CrystalVoice, SBX Pro Studio, EAX, X-Fi and wireless audio technology, our sound cards, headsets and Sound BlasterAxx speakers deliver the utmost.

Sound Blaster Live! is a PCI add-on sound card from Creative Technology Limited for PCs. Moving from ISA to PCI allowed the card to dispense with onboard memory, storing digital samples in the computer's main memory and then accessing them in real time over the bus. This allowed for a much wider selection of, and longer playing, samples. It also included higher quality sound output at all levels, quadrophonic output, and a new MIDI synthesizer with 64 sampled voices. The Live! was introduced in August 1998 and variations on the design remained Creative's primary sound card line into the 2000s.

• 3Models

Overview[edit]

Sound Blaster Live! (August 1998) saw the introduction of the EMU10K1 audio processor. Manufactured in a 0.35 µm 3-metal-layer CMOS process, it is a 2.44 million transistor ASIC rated at 1000 MIPS. The EMU10K1 featured hardware acceleration for DirectSound and EAX 1.0 and 2.0 (environmental audio extensions), along with a high-quality 64-voice MIDI sample-based synthesizer and an integrated FX8010DSP chip for real-time digital audio effects.^[1]

A major design change from its predecessor (the EMU8000) was that the EMU10K1 used system memory, accessed over the PCI bus, for the wavetable samples, rather than using expensive on-board memory. This was possible at this point because systems were being equipped with far more RAM than previously, and PCI offered far faster and more efficient data transfer than the old ISA bus.

The integrated FX8010 was a 32-bit programmable processor with 1 kilobyte of instruction memory. It provided real-time postprocessing effects (such as reverb, flanging, or chorus). This capability let users select a pre-defined listening environment from a control-panel application (concert hall, theater, headphones, etc.) It also provided hardware-acceleration for EAX, Creative's environmental audio technology. The Effect algorithms were created by a development system that integrated into Microsoft Developer Studio. The effects were written in a language similar to C, and compiled into native FX8010 object code by its compiler, fxasm.^[2]

The Sound Blaster Live! featured higher audio quality than previous Sound Blasters, as it processed the sound digitally at every stage, and because of its greater chip integration that reduced the analog signal losses of older, larger cards. Unfortunately, digital processing brought some limitations. The DSP had an internal fixed sample rate of 48 kHz, a standard AC'97 clock, meaning that the EMU10K1 always captured external audio-sources at the 48 kHz, then performed a sample-rate conversion on the 48 kHz waveform to the output the requested target rate (such as 44.1 kHz or 32 kHz). This rate-conversion step introduced intermodulation distortion into the downsampled output. However, the rate-conversion was only applied when the audio signal was passed through the effects engine.^[3] The SB/Live had great difficulty with resampling audio-CD source material (44.1 kHz) without introducing audible distortion. Creative addressed this concern by recommending audio-recording be performed exclusively at 48 kHz, and use third-party software to handle the desired sample-rate conversion, to avoid using the EMU10K1's sample-rate conversion.

Sound Blaster Live! supported multi-speaker output, initially up to a 4-speaker setup. The software referred to this as a '4.1' setup, meaning 4 satellites and a subwoofer. While this is the case, the subwoofer is not on a separate output as it is with 5.1 and higher audio. Instead, a low-pass filter (crossover) within the speaker system removes high and midrange frequencies from the sound card's output for the subwoofer. Games see a '4.1' speaker system as quadraphonic because DirectSound itself offers no subwoofer output in this configuration.^[4] This is not limited to Creative sound cards; Aureal, Ensoniq, Philips, and other manufacturers have made cards that use four-speaker output in the same fashion. Later versions of the Live!, usually called Live! 5.1, offered 5.1-channel support which adds a center-channel speaker and LFE subwoofer output, most useful for movie watching where Dolby Digital 5.1 is decoded.

The Live! implemented DOS legacy support via Ensoniq's AudioPCI DOS TSR program. Creative acquired Ensoniq in 1998 and, as part of the deal, made use of this highly-compatible ISA sound card emulator with their newer cards. In fact, the Live! uses '.ecw' (Ensoniq Concert Wavetable) files for the wavetable emulation in DOS. The program enables support for many standards, such as Sound Blaster 16, General MIDI, AdLib (OPL3), among others.

Sound Blaster Live! was the first sound card from Creative with the 'What U Hear' recording input channel. This was supported in the Windows drivers, so no additional software was needed to utilize it. The analog stereo audio signal that came out of the main Line Out was directed into this input. That way, one could mix all available inputs and the MIDI synth into one stereo signal. When using 'What U Hear' with 5.1 sound, the sound would be downmixed to stereo first. The Creative Recorder utility included with the sound card was specifically designed to take advantage of the 'What U Hear' feature, making it a simple matter to capture streaming sound from any source, even from programs that deliberately avoid providing a means for saving the digital sounds, thus freeing non-technical users from the complexities of 'patching' between inputs and outputs of various software modules.

Design Shortcomings[edit]

^{[citation needed]}

The original SB Live! had a very low noise floor for its time; however, a critical design flaw limited its application in quadraphonic audio. The two S/P-DIF channels that each provided a stereo pair differed in their Digital to Analog reconstruction. Since the AC'97 chip provided an internal 48 kHz DAC, Creative chose not to implement two identical DAC pipelines, and the front-speaker audio pair was subjected to a different reconstruction and amplification regime to that of the rear channel (as evidenced by differently valued pull-up resistors and filter-capacitors in the area forward of the AC'97 chip, in the specifications of the AC'97 itself, and in the use of different amplifier Op-Amps).

The rear channel was serviced by a separate, but arguably better Philips UDA1334 DAC, yet the Op-Amp used to boost the signal to output levels had a noticeably different frequency response envelope that was not normalized to the front channel, leaving a 'thin and quiet' rear channel. To make matters worse, the rear channel Op-Amp was of the inverting variety without being treated as such, leaving the rear speakers out of phase with the front, requiring switchover. These problems were not encountered by those using the Gold editions' daughterboard 4-speaker digital-output, but the tendency of the AC'97 chip to fail when used as an input source to medium-impedance musical instruments removed the use of the front channels altogether, although the chip could be sourced from cheaper AC'97 compatible products and soldered into place. Nevertheless, simply redirecting front signal to rear output of SB Live! was for a long time a favorite trick for computer audio enthusiasts who want better sound for minimum of money.

Despite these problems, the original SB Live! can still be used well as a S/P-DIF input/output and MIDI input/output device for network-connected digital audio workstation environments.

If you do anyway, it will be deleted without further notice. Windows xp media center edition 2005 iso download. Don't post a request if you have under 10 posts as stated on the front page. Forum rulesPlease read the following rules before posting a download request in this area:1.

Models[edit]

Sound Blaster Live! and Live! Value[edit]

The Live! and Live! Value are the original releases of the Live! family.

The Live! Value (also known as Live! 1024) is identical to the full Live! with the exception that it has color-coded plastic connectors instead of gold and does not include the extended digital I/O card. The original Sound Blaster Live! had a proprietary 9-pin mini-DIN connector for digital output that Creative referred to as the 'Mini Din.' This connector allowed the use of a microphone and digital speakers at the same time. This cannot be done with the value and base models of all subsequent Creative sound cards, as they share a single port for S/PDIF digital in/output and microphone connectivity. The Mini-DIN connection was not included in any subsequent Sound Blaster product, however owners of speaker systems that use this as the only digital input may buy an adapter from Creative.

The card is not supported by Windows Vista unless running in the 5.1 surround sound setting.^{[citation needed]}.

An outside party has released free drivers for the sound card here: http://kxproject.com/These Drivers offer more control over the DSP.

For details on the original Live! including the Gold edition, marketing strategy, and design faults, see Sound Blaster Live! (Original)

• Creative Sound Blaster Live! 1024 soundcard upper view (chips)

• Creative Sound Blaster Live! 1024 soundcard side view (connectors)

• Creative Sound Blaster Live! 1024 soundcard back view (soldering)

• Creative Sound Blaster Live! 1024 soundcard 3D view with chips

• Driver CD of Sound Blaster Live! 1024 sound card

Sound Blaster Live! Platinum[edit]

Released 1999 [1] Includes Live! Drive IR

Sound Blaster Live! 5.1 and Sound Blaster Live! Platinum 5.1[edit]

Released 2000. [2] Live! with added outputs for a center channel speaker and LFE subwoofer channel.

Sound Blaster Live! Dell OEM[edit]

This card, marketed as a Sound Blaster Live!, did not have the full capabilities of the retail versions of Live! It used a different audio chip, not EMU10K1 but EMU10K1X, that is noticeably smaller with fewer pins. The chip does not accelerate DirectSound in hardware, nor EAX. The sale of this board by Dell created some controversy because it was not obviously marketed as an inferior or cheaper product. The card can be identified by its part number (SB0200/0203). [3]

Sound Blaster Live! 5.1 Digital (Dell OEM, SB0220)[edit]

This was a later, improved model. The EMU10K1 chip was restored, as was hardware EAX/DirectSound/DirectSound3D acceleration. Currently there are Windows drivers available for download from Creative's website (filename: (Dell) Driver Install Pack 2_10 Languages). It was recommended that recording should be done at 48 kHz sampling rate, as there was an issue with hardware down-sampling.

I'll take a look at what you wrote and I can probably learn a lot from you. And yeah it's possible I'd need some guidance were I to continue with it but as said it's no big deal. I was kind of halfway doing it just to learn more.

Sound Blaster Live! 24-bit[edit]

The Sound Blaster Live! 24-bit (SB0410) was not actually a member of the Sound Blaster Live! family, because it lacked the EMU10k1/10k2 processor. It was a stripped-down version of the Audigy Value, with an SNR of 100 dB, software based EAX, no advanced resolution DVD-Audio Playback, and no Dolby Digital 5.1 or Dolby Digital EX 6.1 playback. A proof of this is that on Linux operating systems, when using the ALSA sound system, the module that is used for the Sound Blaster Live! 24-bit is snd-ca0106, while the module that is used by the Sound Blaster Live! is snd-emu10k1.

EMU APS (Audio Production Studio)[edit]

This was a professional version made by E-mu which was owned by Creative and had developed the EMU10K1 chip featured on Creative's Live! products. Its professional features included effects with higher quality, front-mounted drive bay panel with headphone output, dual mic/line inputs with physical level control knobs, digital coax in/out on both PCI card and drive bay, mixer with dB precision, phantom power for microphones (12V), ASIO, mixer presets, internal mixer rerouting, 64 MIDI channels, 32MB system RAM usage for SF2 (Gigabyte expandable in WinXP) and future expandability through an extra multi-out card. It also featured line in and line out; all analogue inputs and outputs were balanced ¼'/6.3mm TRS jacks.^[5][6]

See also[edit]

References[edit]

1. ^Thomas C. Savell (March–April 1999). 'The EMU10K1 Digital Audio Processor'(PDF). Joint Emu/Creative Technology Center. Archived from the original(PDF) on March 2, 2014. Retrieved January 20, 2018.
2. ^Steve Hoge. 'FX8010 - A DSP Chip Architecture for Audio Effects'(PDF). Joint Emu/Creative Technology Center. Retrieved January 20, 2018.
3. ^'Creative Labs SoundBlaster Live!'. Sound On Sound. May 1999. Retrieved January 18, 2016.
4. ^'DirectSound with 4 speakers ???'. Google Groups. December 20, 1999. Retrieved February 7, 2015.
5. ^'Emu Audio Production Studio PCI Soundcard System'. Sound On Sound. January 1999. Retrieved February 7, 2015.
6. ^'EMU APS INFORMATION'. Retrieved February 7, 2015.
